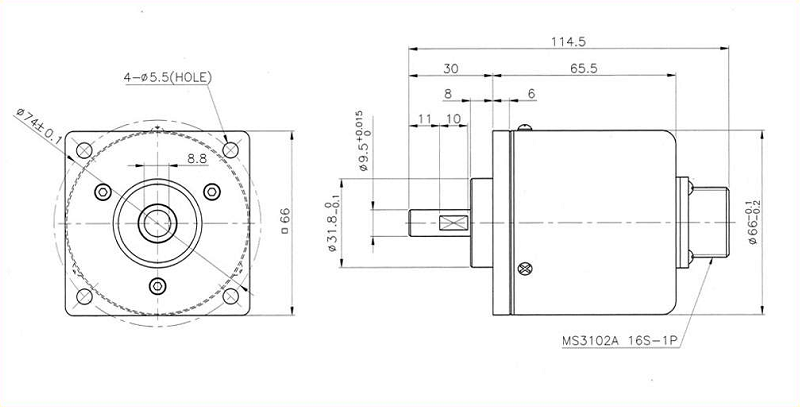

RIB-60-22 Solid Shaft Encoder

  • Wide Ranging Applications

  • High reliability

  • Measuring Instruments

Electrical Specifications

Resolution

250

Supply Voltage

DC +5V ~ 28V

Current Consumption

60 mA Max.

Frequency Response

20 kHz Max.

Rise and Falling Time

3 µs


Mechanical Specifications

Maximum Rotational Speed

5000 RPM

Starting Torque

100gf. cm Max. at 25°C

Moment of Inertia

30gf.cm² Max.

Maximum Shaft Load

Radial

3 kg Max.

Axial

3 kg Max.

Vibration Resistance

10 ~ 55Hz / 1.5mm

Shock Resistance

50G / 11msec

Operating Temperature Range

-10°C ~ +60°C

Storage Temperature Range

-20°C ~ +85°C

Protection

IP50 / IP64
