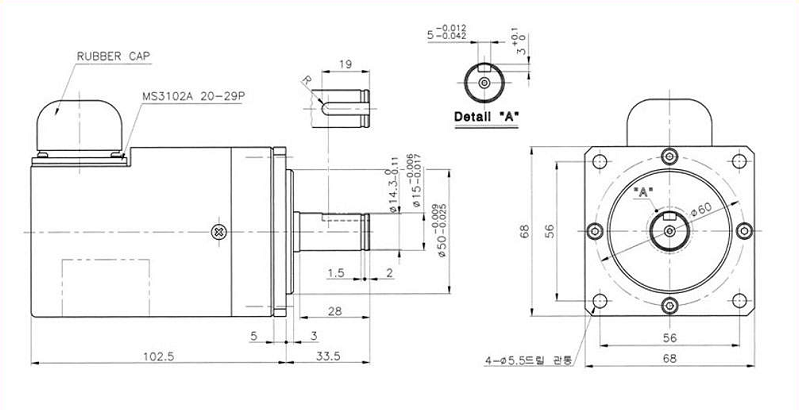

RIB-60-16 Solid Shaft Encoder
Heavy Duty Type
High Frequency Response
Transmittable for a long distance
Rigid Type
Electrical Specifications
Resolution
1024
Supply Voltage
Line Driver
DC +5V
Totem Pole
DC +5V ~ 28V
Current Consumption
150 mA Max.
Frequency Response
136 kHz Max.
Rise and Falling Time
Line Driver
0.3 µs
Totem Pole
3 µs
Mechanical Specifications
Maximum Rotational Speed
8000 RPM
Starting Torque
300gf. cm Max. at 25°C
Moment of Inertia
250gf.cm² Max.
Maximum Shaft Load
Radial
5 kg Max.
Axial
5 kg Max.
Vibration Resistance
10 ~ 55Hz / 1.5mm
Shock Resistance
50G / 11msec
Operating Temperature Range
-10°C ~ +60°C
Storage Temperature Range
-20°C ~ +80°C
Protection
IP50
