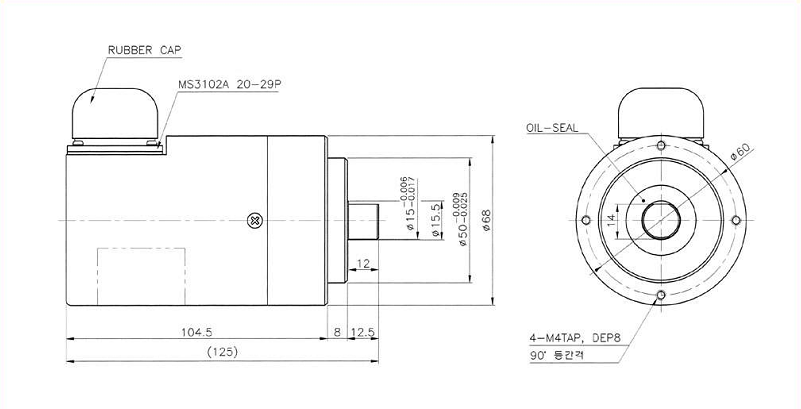

RIB-60-20 Solid Shaft Encoder

  • Ultra rugged model

  • High reliability

  • Vibration Proof Design

Electrical Specifications

Resolution

250, 600

Supply Voltage

DC +24V

Current Consumption

300 mA Max.

Frequency Response

30 kHz Max.

Rise and Falling Time

5 µs


Mechanical Specifications

Maximum Rotational Speed

3000 RPM

Starting Torque

300gf. cm Max. at 25°C

Moment of Inertia

250gf.cm² Max.

Maximum Shaft Load

Radial

5 kg Max.

Axial

5 kg Max.

Vibration Resistance

10 ~ 55Hz / 1.5mm

Shock Resistance

50G / 11msec

Operating Temperature Range

-10°C ~ +60°C

Storage Temperature Range

-20°C ~ +80°C

Protection

IP64
