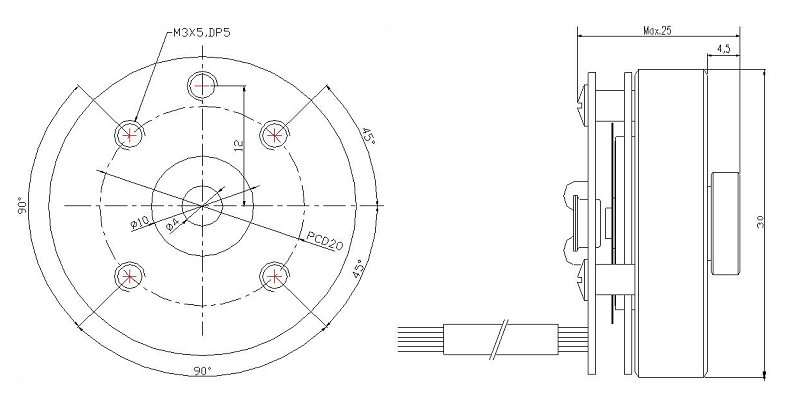

RIA-30-50 Hollow Shaft Encoder

  • Small Compact Size
  • Wide Ranging Applications
  • Wide Supply Range
  • Low Cost

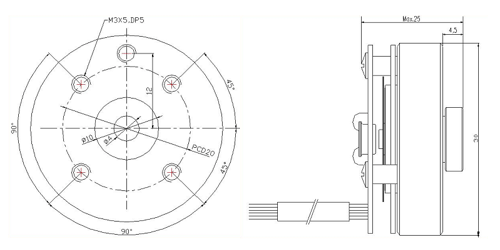

RIB-40-12

Electrical Specifications

Resolution

50, 100, 150, 200

Supply Voltage

Open Collector
Voltage Output

DC + 5 ~ 28V

Current Consumption

100 mA Max.

Frequency Response

20 kHz Max.

Rise and Falling Time

Open Collector
Voltage Output

1 µs



Mechanical Specifications

Maximum Rotational Speed

4000 RPM

Starting Torque

300gf. cm Max. at 25C

Moment of Inertia

3 gf.cm² Max.

Maximum Shaft Load

Radial

0.7 kg Max.

Axial

0.4 kg Max.

Vibration Resistance

10 ~ 55Hz / 1.5mm

Shock Resistance

50G / 11msec

Operating Temperature Range

-10°C ~ +70°C

Storage Temperature Range

-10°C ~ +65°C

Protection
