MBR Rotary Shaft Encoder
The MBR Series optical shaft encoder represents a major price - performance breakthrough. It utilizes IRED light sources and precision mechanical components to provide long life and durability.
It is available with single channel or quadrature output and can be used to derive RPM, feet per minute and angular position. When used with simple controls, material can be cut to length and over
and under speed conditions detected. The MBR package with its easy mounting and standardized connector is designed to meet the demands of industry and its price, the goals of the OEM. Over
five
decades of engineering and manufacturing experience is embodied in every "MBR". FSI is committed to manufacturing quality products and providing complete customer satisfaction!
Features | Applictions | |
Pricing starts at $99.00 each | Robotics | |
Single or Dual Channel Quadrature Output | Speed Controls | |
Uses industry standard DB9 connectors Pinout to FSI-DB9TM standard | Machine Tools | |
High Noise Immunity | Cut to Length | |
Short Circuit Protection | Position Control | |
Reverse Polarity Protection | Index Tables | |
Input Voltage Range 12-28 VDC | ||
Single Ended 3/8" S/S Shaft | ||
Infrared LED and SMD Circuitry | ||
Heavy Duty Chrome Steel Bearings | ||
Low Power Consumption | ||
Available in 10 different models |

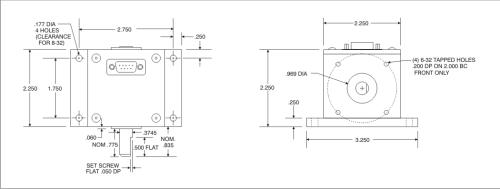

Mechanical

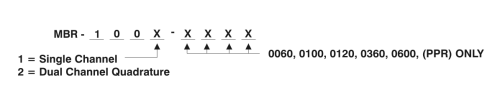

Ordering Information
Brochure Download:
MBR Specification Sheet (650K)
