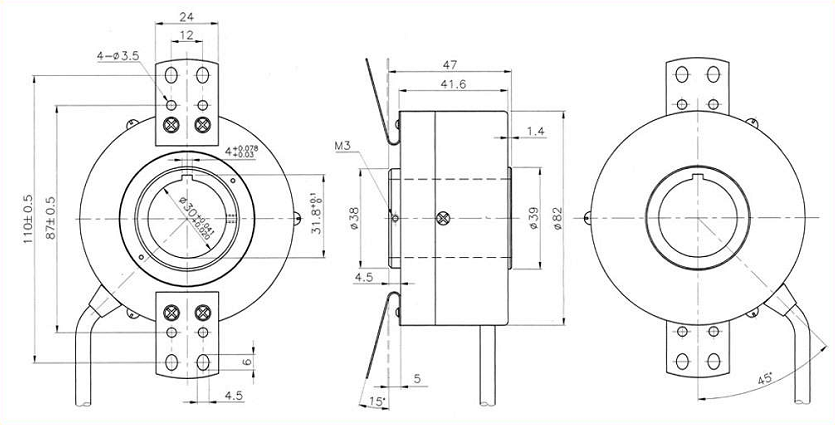

RIA-80-26 Hollow Shaft Encoder

  • High Reliability
  • Rigid Type







RIB-40-12

Electrical Specifications

Resolution

100, 1024

Supply Voltage

Line Driver

DC + 5 V

Complementary  Open Collector Voltage Output

DC + 15 V

Current Consumption

150 mA Max.

Frequency Response

100 kHz Max.

Rise and Falling Time

Line Driver

0.2 µs

Complementary  Open Collector Voltage Output

3 µs



Mechanical Specifications

Maximum Rotational Speed

6000 RPM

Starting Torque

200gf. cm Max. at 25°C

Moment of Inertia

200gf.cm² Max.

Maximum Shaft Load

Radial

5 kg Max.

Axial

3 kg Max.

Vibration Resistance

10 ~ 55Hz / 1.5mm

Shock Resistance

50G / 11msec

Operating Temperature Range

0°C ~ +70°C

Storage Temperature Range

-20°C ~ +85°C

Protection

IP50
