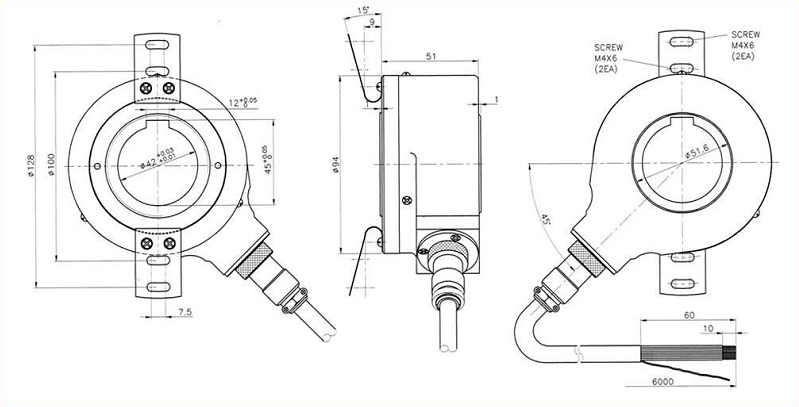

RIA-90-34 Hollow Shaft Encoder

  • High Frequency Response

  • High Resolution

  • High Reliability

Electrical Specifications

Resolution

1024, 4096

Supply Voltage

DC + 5V ±5%

Current Consumption

140 mA Max.

Frequency Response

204 kHz Max.

Rise and Falling Time

0.3 µs


Mechanical Specifications

Maximum Rotational Speed

3000 RPM

Starting Torque

500gf. cm Max. at 25°C

Maximum Shaft Load

Radial

20 kg Max.

Axial

10 kg Max.

Vibration Resistance

10 ~ 55Hz / 1.5mm

Shock Resistance

100G / 11msec

Operating Temperature Range

0°C ~ +70°C

Storage Temperature Range

-20°C ~ +80°C

Protection

IP50
