Inspection Systems

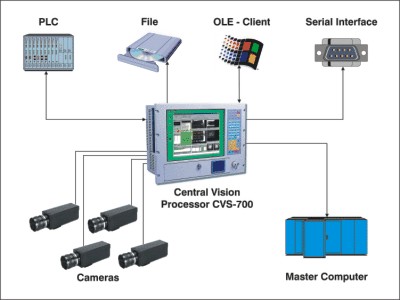

The following image displays a possible setup of an inspection system realized with NeuroCheck:

Images from one or more cameras are transferred to the PC via frame grabber boards. NeuroCheck then analyzes the image, yielding results like:

• measurement values, like size or distance of objects within the image;

• optical properties, like brightness or contrast of objects;

• identified texts or bar codes;

or simply the statement: "Part O.K." or "„Part not O.K.".

These results can be passed on through various channels, e.g. via digital I/O boards or the serial interface directly to a PLC or master computers, or to files, which can be read by standard software like spreadsheet programs.

NeuroCheck's communication channels can also be used to remote-control the software. PLC and master computer  can trigger the inspection process according to the production cycle time, switch check routines depending on the type of work piece to be inspected etc. Thus it is possible to achieve fully automatic inspection of every single item produced.
